51 12 210 Removing and installing trim on rear left or right bumper side section
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

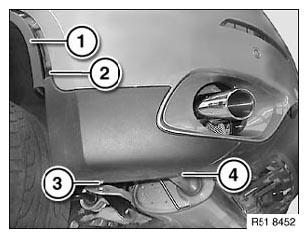

Partially detach rear wheel arch trim (1) (see 51 71 478 Removing and installing/replacing trim on rear left or right wheel arch ).
Unfasten screws (2 and 3).
Release expansion rivet (4).
Installation:
If necessary, replace expander rivet (4).
Break open welded clips (1).
Installation:
Secure broken open clips with retainers.

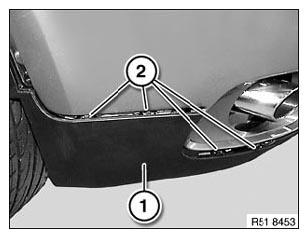

Carefully detach trim (1) from catches (2).
Installation:
Catches on trim and bumper side section must not be damaged.
