51 12 156 Removing and installing rear bumper panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim on bumper trim, see 51 11 156 Removing and installing front bumper trim .

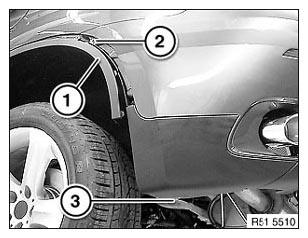

Partially detach rear wheel arch trim (1) (see 51 71 478 Removing and installing/replacing trim on rear left or right wheel arch ). Unfasten screws (2 and 3).

Fig 1: Identifying Rear Wheel Arch Trim And Screws

G06212423

Courtesy of BMW OF NORTH AMERICA, INC.

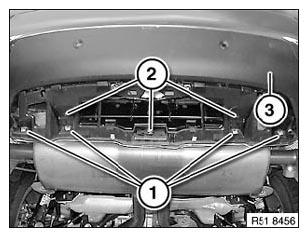

Release screws (1 and 2) on lower bumper trim section (3).

Fig 2: Identifying Screws And Lower Bumper Trim Section

G06212424

Courtesy of BMW OF NORTH AMERICA, INC.

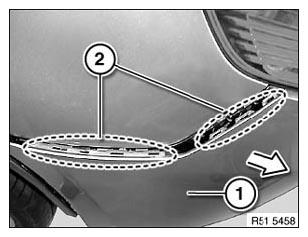

Pull bumper trim (1) with a 2nd person helping on left and right in direction of arrow out of catches (2).

Installation:

Bumper trim (1) must be correctly fed in at catches (2).

Fig 3: Identifying Bumper Trim And Catches

G06212425

Courtesy of BMW OF NORTH AMERICA, INC.

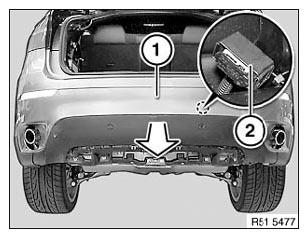

Pull bumper trim (1) forwards with a 2nd person helping and disconnect plug connection (2).

Remove bumper trim (1) in direction of arrow.

Fig 4: Identifying Bumper Trim And Plug Connection

G06212426

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

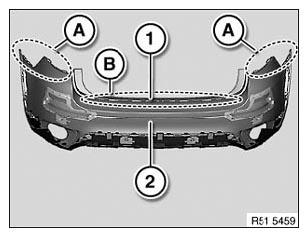

Catches in areas (A and B) and guide (1) on trim (2) must not be damaged.

Fig 5: Identifying Guide And Trim

G06212427

Courtesy of BMW OF NORTH AMERICA, INC.
