3.1 Remove adhesive residue from the body and window glass

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

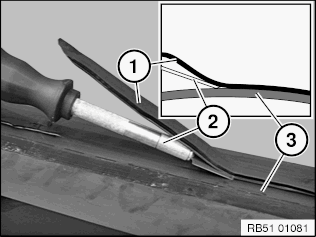

To remove the residual adhesive bead (1) from the body aperture and when reusing on the window glass (3), use the pinchweld scraper (2).

Position the pinchweld scraper (2) as shown and detach residual adhesive bead (1) to a thickness of approx. 0.5 mm.

Do not remove residual adhesive bead (1) until shortly before bonding.

Fig 1: Remove Adhesive Residue From Body And Window Glass
G00530557Courtesy of BMW OF NORTH AMERICA, INC.
