Preparation Of New Part

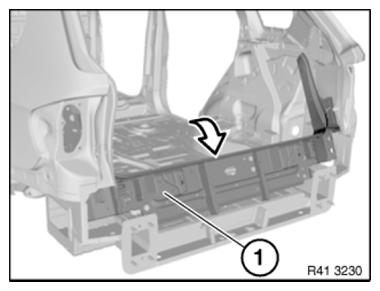

Adjust rear trim panel inner section (1) and rear trim panel outer section in combination with tailgate and rear lights to fit and secure.

Fig 1: Adjusting Rear Trim Panel Inner Section

Courtesy of BMW OF NORTH AMERICA, INC.

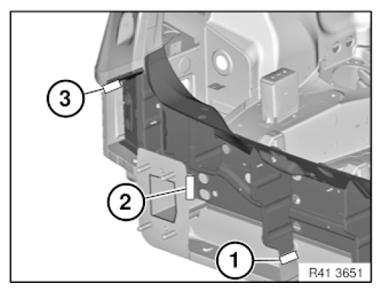

Set eleven Ø 4.8 mm holes in total for blind rivets in area (1).

Set 3 bore holes for blind rivets in area (2).

In area (4) prepare new part and vehicle for MAG weld (metal active gas).

Installation note:

N4 In area (3) 2 punch rivets are used.

Fig 2: Identifying Rivet And MAG Welding Areas

Courtesy of BMW OF NORTH AMERICA, INC.

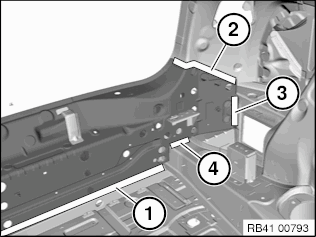

In areas (1) and (2) prepare new part and vehicle for MAG weld (metal active gas).

Installation note:

Area (1) not present on all vehicles.

In area (3) one punch rivet N4 is used.

Fig 3: Identifying MAG Weld And Punch Rivet Area

Courtesy of BMW OF NORTH AMERICA, INC.

Set five 4.8 mm holes for blind rivets in each of areas (1).

In areas (2), set 4 holes for blind rivets.

Remove new parts again and deburr holes.

Fig 4: Identifying Rivet Areas

Courtesy of BMW OF NORTH AMERICA, INC.
