Preparation Of New Part

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Adjust rear trim panel in combination with rear lid and rear lights to fit and secure.

Set five 4.8 mm holes for blind rivets in each of areas (1).

Set 4 bore holes with Ø 4.8 mm in these areas (2).

Remove new part again and deburr bore holes.

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.

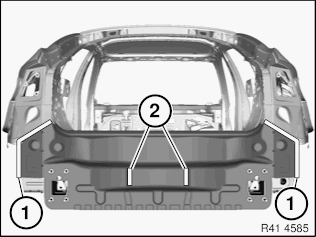

Fig 1: Identifying Rivet Areas
G00530575Courtesy of BMW OF NORTH AMERICA, INC.
