Installing Reinforcement Plate

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Clean all bonding surfaces.

Apply adhesive to reinforcement plate in area (1). Apply more adhesive in the radii to avoid air pockets.

Carefully slide reinforcement plate into component on vehicle and secure by screwing on nuts (2). Screw on nuts a few turns only.

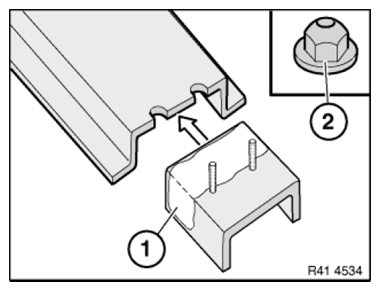

Fig 1: Sliding Reinforcement Plate Into Vehicle Components

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When joining reinforcement plate, make sure there is sufficient adhesive on bonding surfaces.

Apply adhesive to reinforcement plate bonding surface (1). Apply more adhesive in the radii to avoid air pockets.

Fit new part (2).

Align new part to adjoining component and secure with gripping pliers.

Tighten nuts.

Tightening torque: 3 Nm

IMPORTANT: Check that the transition of the components is OK at the separation point. Corrections can only be made before the adhesive has hardened. Straightening at a later stage is not possible.

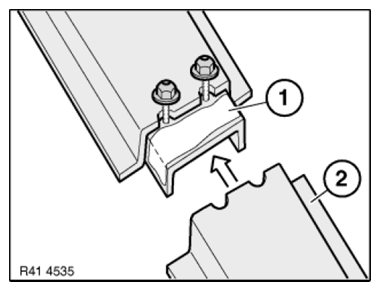

Fig 2: Fitting Part Into Reinforcement Plate Bonding Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Concluding tasks at separation point:

After adhesive has hardened:

In area visible to customer:

Cut off stud bolts with bodywork saw.

Completely remove adhesive residue in joint (1).

Round off sharp edges by grinding.

IMPORTANT: Avoid heating the separation point by excessive grinding.
Reworking by pressing not permitted!

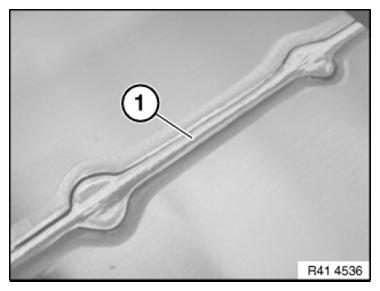

Fig 3: Identifying Joint Adhesive Residue

Courtesy of BMW OF NORTH AMERICA, INC.

Only the BMW-approved METAL FILLER should be used on the joint.

Follow instructions in METAL FILLER - INSTRUCTIONS FOR USE .

Not in area visible to customer:

Examples: The joint is covered by sill trim panel, windows, seals, etc.

Grind off stud bolts and surplus adhesive flush. Do not use metal filler. Paint area as specified in BMW Painting Handbook.

NOTE: After painting, the joint becomes visible as the adhesive shrinks. This has no affect on the quality.
