34 11 519 Removing and installing/replacing left or right front brake caliper

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).

Necessary preliminary tasks:

Remove wheel
Remove brake pad wear sensor
Read and comply with GENERAL INFORMATION .

After completing work: Bleed braking system

Press clutch pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Pressing Clutch Pedal Down To Floor

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retainer (1) from bracket on spring strut in upward direction.

Installation:

Retainer (1) must be felt and heard to snap into place.

Ensure correct seating in guide.

Fig 2: Detaching Retainer From Bracket On Spring Strut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.

Disconnect brake hose from brake line (1).

Installation:

Tightening torque 34 32 1AZ . See 34 32 BRAKE LINES .

Fig 3: Identifying Brake Line

Courtesy of BMW OF NORTH AMERICA, INC.

Detach brake hose from brake caliper (1).

Installation:

Tightening torque 34 32 2AZ . See 34 32 BRAKE LINES .

Fig 4: Identifying Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: First tighten brake hose on brake caliper.
Move wheels into straight-ahead position.
Insert brake hose in bracket and screw onto brake pipe.
Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

Release screws (1).

Installation:

Tightening torque 34 11 2AZ . See 34 11 FRONT BRAKE .

Detach brake caliper in direction of arrow from swivel bearing.

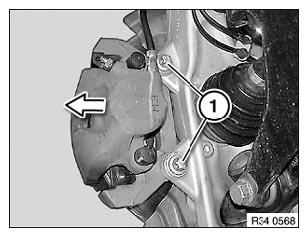

Fig 5: Identifying Brake Caliper Screws

Courtesy of BMW OF NORTH AMERICA, INC.
