34 52 121 Removing and installing/replacing ICM control unit: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove center console. See 51 16 165 REMOVING AND INSTALLING/REPLACING COMPLETE CENTRE CONSOLE .

Disconnect plug connection (1).

Unclip wiring harness (2) from control unit.

Fig 1: Identifying Plug Connection And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

Replace screws.

Tightening torque 34 51 6AZ . See 34 51 SLIP CONTROL SYSTEM (DSC) .

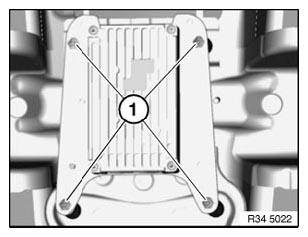

Fig 2: Identifying Control Unit Screws

Courtesy of BMW OF NORTH AMERICA, INC.
