37 13... Removing and installing/replacing pressure line (middle) for oscillating motor/rear axle
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
Scalding hazard!
This work may only be carried out on an exhaust system which has cooled down.
RISK OF INJURY if oil comes into contact with eyes and skin!
Scalding hazard!
This work may only be carried out on an exhaust system which has cooled down.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Recycling:
Catch and dispose of hydraulic fluid in a suitable container.
Necessary preliminary tasks:
- Remove TANK UNDERRIDE PROTECTION
Release banjo bolts (1).
Seal pressure lines with suitable sealing plugs.
Installation note:
Tightening torque 37 14 15AZ .

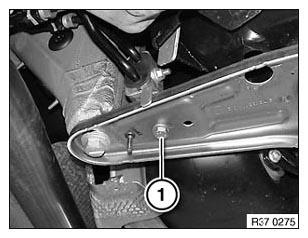

Release screw (1).
Installation note:
Tightening torque 37 14 17AZ .
IMPORTANT:
Risk of damage!
Adjust minimum distance (A and B) between pressure lines and exhaust system.
Adjust minimum distance (A and B) between pressure lines and exhaust system.
PRESSURE LINES AND EXHAUST SYSTEM DISTANCE REFERENCE
| Engine | A | B |
|---|---|---|
| M57 T2 | 39 mm | 41 mm |
| M57 Top | 45 mm | 36 mm |
| N52 | 34 mm | 37 mm |
| N54 | 53 mm | 48 mm |
| N62 | 48 mm | 50 mm |
| N63 | 48 mm | 39 mm |
| S63 | 45 mm | 36 mm |
Ensure distortion-free installation (see Fig 3 ).
Release banjo bolts (1).
Seal pressure lines with suitable sealing plugs.
Feed out pressure line towards rear.
Installation note:
Pressure lines are protected against being mixed up by different thread diameters.
Tightening torque 37 14 15AZ .
After installation:
- Fill and bleed HYDRAULIC SYSTEM
- Check pipe connections for leaks
- Carry out INITIAL DYNAMIC DRIVE OPERATION .
