24 00 043 Installing exchange transmission (GA6HP26Z) (X6 50i)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Drain automatic transmission fluid at oil drain plug.
Tightening torque:
- Metal oil sump: 12 Nm
- Plastic oil sump: 8 Nm
IMPORTANT:
After completion of work, program transmission control unit.
Recycling:
Catch and dispose of escaping transmission fluid.
Observe country-specific waste-disposal regulations
IMPORTANT:
- Before installing replacement transmission, always FLUSH TRANSMISSION FLUID COOLER TOGETHER WITH LINES .
- After completion of work, CHECK TRANSMISSION FLUID LEVEL .
Replacement transmission is supplied filled with transmission fluid.
- Use only the approved TRANSMISSION OIL
.
Failure to comply with this instruction will result in serious damage to the transmission.
Necessary preliminary tasks:
- Remove AUTOMATIC TRANSMISSION .
Modify gearshift lever (1).
Tightening torque: 10 Nm
Modify clip (2) for cable.
Modify TRANSFER CASE .
Modify transportation retainers.
Convert all cable clips.
Convert all seal plugs.
Modify protective cap on output shaft.
IMPORTANT:
After removing transportation retainer, secure torque converter against slipping out.

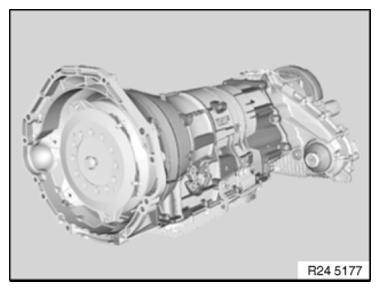

Transmission identification:
- refer to BMW Parts Department
- on type plate
