24 50 010 Replacing emergency actuator

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear compartment blower. See 64 11 263 REMOVING AND INSTALLING COMPLETE REAR CABIN FAN .
Remove air duct under center console.

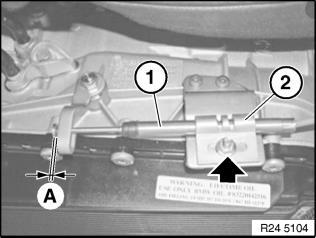

Unfasten nut. Remove cable (1). Installation: Adjust gearshift lever.

Fig 1: Removing Cable

Courtesy of BMW OF NORTH AMERICA, INC.

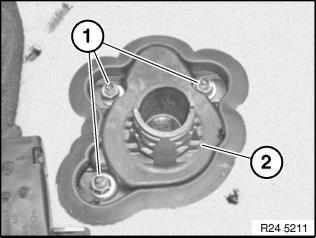

Release screws (1) and remove emergency actuator (2) in upward direction.

Fig 2: Removing Emergency Actuator

Courtesy of BMW OF NORTH AMERICA, INC.
