18 10 070 Replacing Vibration Damper On Exhaust System At Rear (N54)

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of burning and other injuries!
Work should only be carried out on an exhaust system that has cooled down.

Release screw.

Replace vibration damper (1) and washers.

Assemble exhaust system.

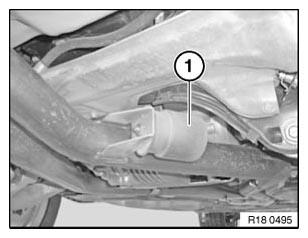

Fig 1: Identifying Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.
