11 61 050 Removing and installing intake air manifold (N54)

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

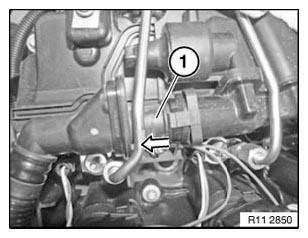

Disconnect crankcase breather (1) on cylinder head cover and pull off in direction of arrow.

Fig 1: Identifying Crankcase Breather On Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off vacuum hose (1).

Detach tank vent valve (2) from mounting.

Release hose (3) and set down in engine compartment.

Fig 2: Identifying Vacuum Hose, Tank Vent Valve And Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on oil pressure switch.

Fig 3: Identifying Plug Connection On Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Release retainers (1) on fuel rail and place to one side.

Disconnect plug connection (2).

NOTE: Do not detach fuel line.

Unscrew nuts (3).

Release screw (4).

Tightening torque: 11 61 1AZ , see INTAKE MANIFOLD

Fig 4: Identifying Retainers On Fuel Rail And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Raise intake air manifold.

Release screws (1).

Set down distributor housing (2) in engine compartment.

Fig 5: Identifying Screws And Distributor Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Cut cable tie (1).

Disconnect plug connection (2).

Installation:

Replace all seals (3).

Fig 6: Identifying Cable Tie, Plug Connection And Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace all seals.

Assemble engine.
