13 Removing intake duct (N63)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

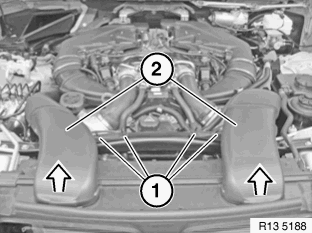

Release expansion rivet (1). Pull off air intake hose (2) upwards.

Fig 1: Removing Air Intake Hose
G00529730Courtesy of BMW OF NORTH AMERICA, INC.

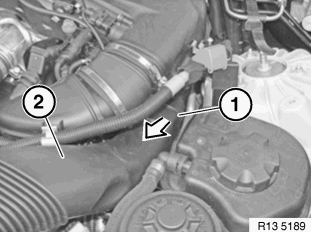

Press in catch (1). Pull off air intake hose (2) in direction of travel.

Fig 2: Pulling Off Intake Hose
G00530091Courtesy of BMW OF NORTH AMERICA, INC.
