11 65 Connection diagram, vacuum activation (N63)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

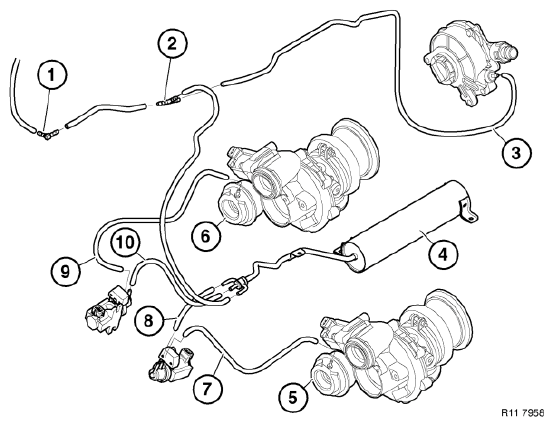

Fig 1: Vacuum Lines Diagram
G06178772Courtesy of BMW OF NORTH AMERICA, INC.
  1. Connection (1) black  to exhaust flaps.
  2. Distributor element (2), vacuum pump / vacuum reservoir (4).
  3. Vacuum line (3) black  to vacuum pump.
  4. Vacuum reservoir (4) with three connections.
  5. Connection, vacuum unit (wastegate), bank 2, cylinders 5 to 8.
  6. Connection, vacuum unit (wastegate), bank 1, cylinders 1 to 4.
  7. Vacuum hose (7) black / blue  to connection, vacuum unit, (5) to pressure transducer (OUT), bank 2, cylinders 5 to 8.
  8. Vacuum hose black  to connection, vacuum reservoir, to pressure transducer (VAC), bank 2, cylinders 5 to 8.
  9. Vacuum hose (9) black / red  to connection, vacuum unit, (6) to pressure transducer (OUT), bank 1, cylinders 1 to 4.
  10. Vacuum hose black  to connection, vacuum reservoir, to pressure transducer (VAC), bank 1, cylinders 1 to 4.
