11 61 068 Removing and installing/replacing right intake manifold (N63)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 0 200

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove complete front panel.
Remove complete cooling core with condenser . See 17 11 000 REMOVING AND INSTALLING RADIATOR (N63) .
Remove power steering pump with bracket. See 32 41 033 REMOVING AND INSTALLING POWER STEERING PUMP FOR POWER STEERING GEAR WITH ACTIVE FRONT STEERING (N63) or 32 41 037 REMOVING AND INSTALLING/REPLACING POWER STEERING PUMP FOR POWER STEERING GEAR WITH DYNAMIC DRIVE (N63) .
Remove right injection pipe . See 13 53 205 REMOVING AND INSTALLING/REPLACING LEFT RAIL (N63) .

Detach engine ventilation hose (1).

Unscrew nuts (2).

Tightening torque: 11 61 1AZ, see INTAKE MANIFOLD

Fig 1: Identifying Engine Ventilation Hose With Nuts

G06178760

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 00 0 200.

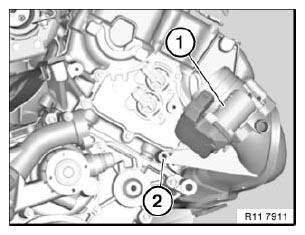

Fig 2: Attaching Suitable Chains To Special Tool And Suspend From Both Engine Suspension Eyelets

G06178761

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts on left and right engine support arms.

Raise engine.

Fig 3: Identifying Engine Mounting Screws

G04739616

Courtesy of BMW OF NORTH AMERICA, INC.

Remove throttle valve (2).

Release screw (1).

Tightening torque: 11 61 2AZ, see INTAKE MANIFOLD

Installation:

Replace all profile seals.

Fig 4: Identifying Throttle Valve With Screw

G06178763

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine and vehicle.

Check intake system for leaks.
