Removing engine cover (N63)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

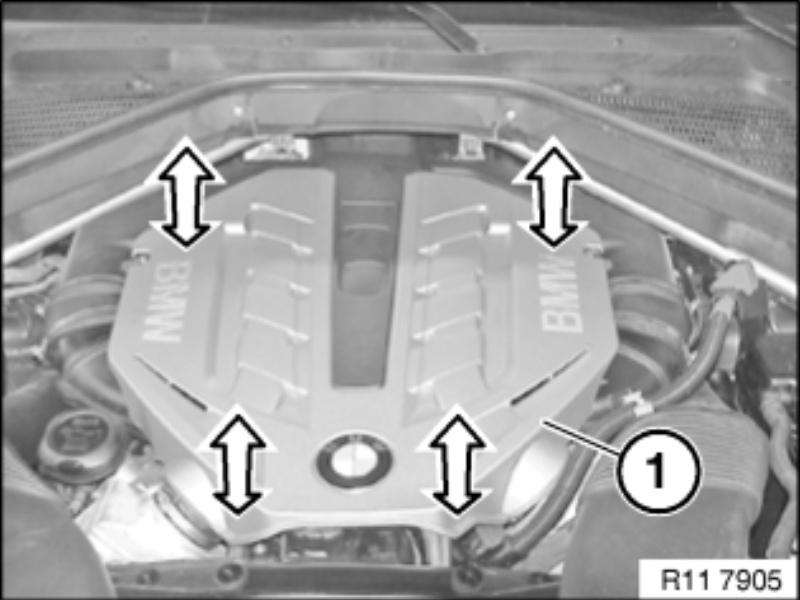

Raise engine cover (1) at the four points (see arrows) and in upward direction.

Fig 1: Identifying Engine Cover

Courtesy of BMW OF NORTH AMERICA, INC.

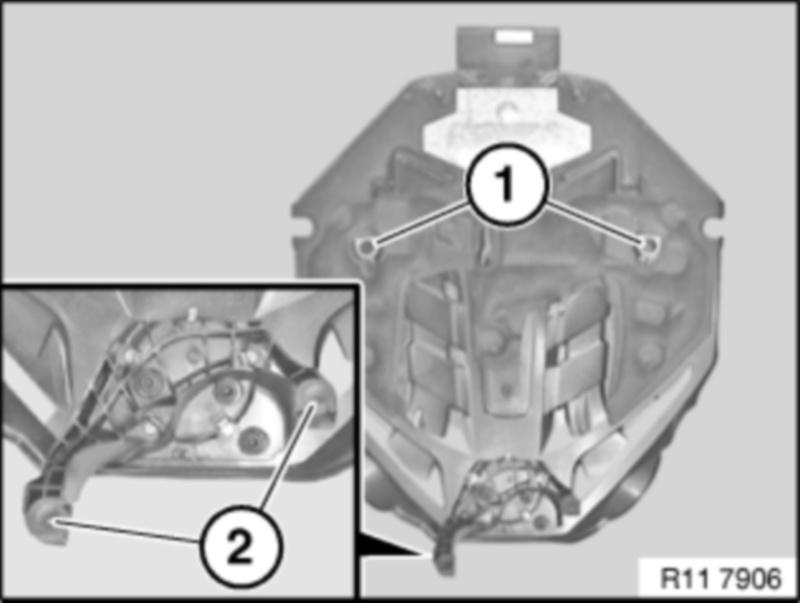

Check lock (1) for damage.

Check lock (2) for damage.

Fig 2: Identifying Engine Cover Locks

Courtesy of BMW OF NORTH AMERICA, INC.

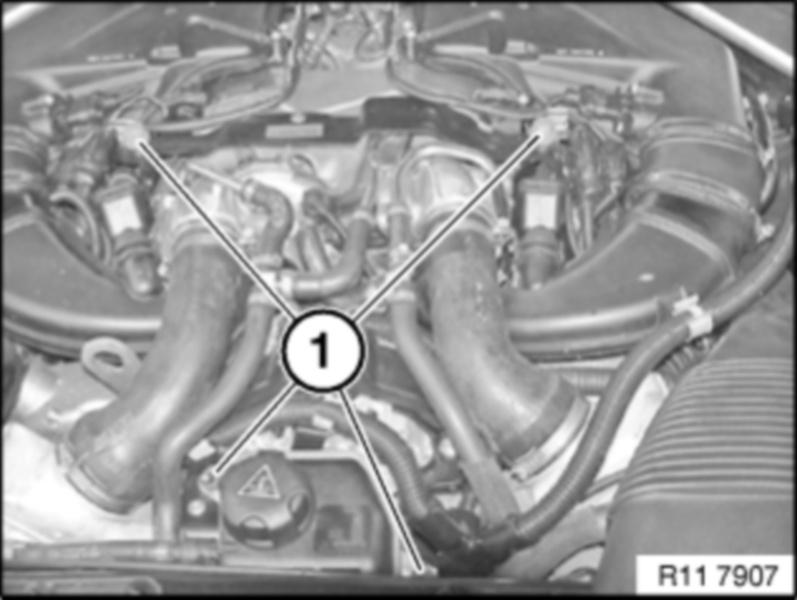

Apply a light coating of antiseize agent to take-ups (1).

Fig 3: Locating Engine Cover Take-Ups

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine
