00 11 259 Changing oil in rear differential (Dynamic Performance Control) and disposing of used oil

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The rear differential has three oil chambers. The outer chambers (1, 3) contain the oil "SAF carbon mod", but with different filling capacities. The middle chamber (2) contains the "SAF XO Burmah Castrol" oil. The oils will mix if the rear differential is subject to a change in position in excess of 45°.

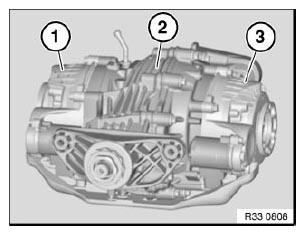

Fig 1: Identifying Outer And Middle Chambers

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of burning if exhaust system is touched!

Danger of poisoning if oil is ingested/absorbed through the skin! See 00 Danger of poisoning if oil is ingested/absorbed through the skin .

Risk of injury if oil comes into contact with eyes and skin! See 00 Risk of injury if oil comes into contact with eyes and skin .

NOTE: Only change oil when rear differential is at normal operating temperature.

Recycling:

Catch and dispose of escaping rear differential oils.

Observe country-specific waste-disposal regulations

Place oil collecting apparatus underneath.

Open oil drain plugs (1).

Drain and dispose of rear differential oils.

Replace oil drain plugs (1).

Tightening torque, see 33 11 REAR DIFFERENTIAL CASE WITH COVER .

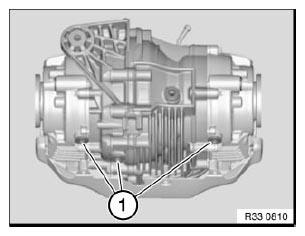

Fig 2: Identifying Oil Drain Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Open oil filler plugs (1) and pour up to lower edge of opening for oil filler plugs (1).

Open oil filler plug (2) and pour up to lower edge of opening for oil filler plug (2).

Replace oil filler plugs (1, 2).

Tightening torque, see 33 11 REAR DIFFERENTIAL CASE WITH COVER .

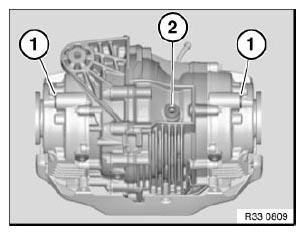

Fig 3: Identifying Oil Filler Plugs

Courtesy of BMW OF NORTH AMERICA, INC.
