72 12... Overview of airbag modules, airbag control unit, belt tensioners

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

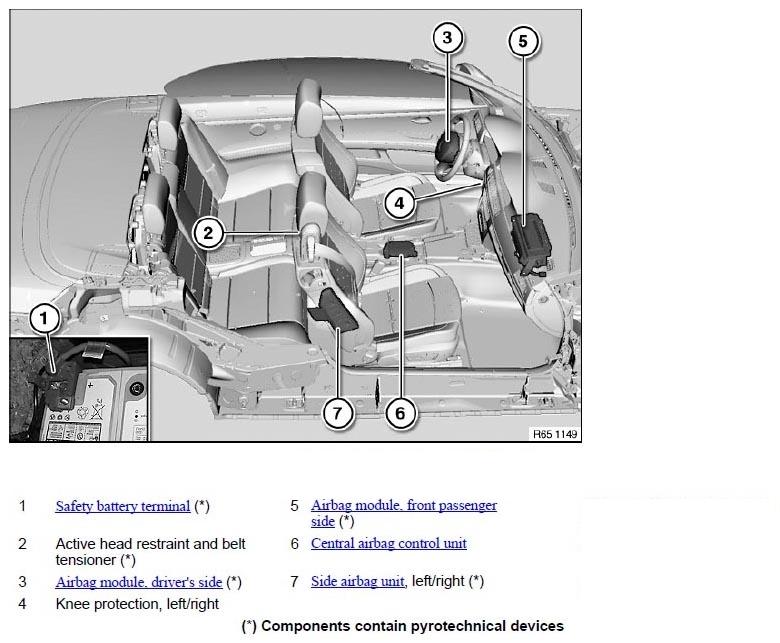

Fig 1: Identifying Airbag Modules, Airbag Control Unit And Belt Tensioners (E88)
G06178100Courtesy of BMW OF NORTH AMERICA, INC.

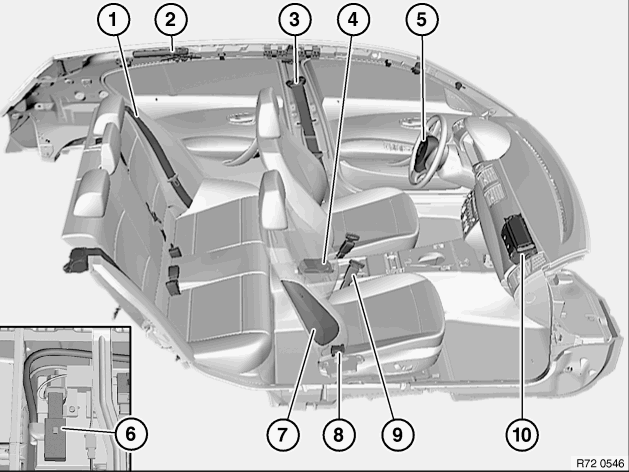

Fig 2: Identifying Airbag Modules, Airbag Control Unit And Belt Tensioners (E82)
G00532632Courtesy of BMW OF NORTH AMERICA, INC.
