72 11 033 Removing and installing/replacing front seat belt (Convertible)

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear side trim panel . See 51 43 002 REMOVING AND INSTALLING (REPLACING) REAR LEFT OR RIGHT SIDE TRIM PANEL .

NOTE: If a seat belt which is damaged due to an accident is exchanged, check the slide bar for damage (bending) and replace if necessary.

Installation:

Microencapsulated screws (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 minutes (start of curing)
Microencapsulated screws must not be retightened
Clean thread of nut beforehand in event of repeated use

Lever out cap (1).

Release screw (2).

Tightening torque: 72 11 05A, see 72 11 SEAT BELTS

Installation:

Check that spacer bushing (3) and rubber ring (4) are in correct position.

Fig 1: Identifying Spacer Bushing And Rubber Ring Position

Courtesy of BMW OF NORTH AMERICA, INC.

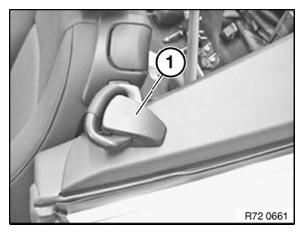

Unclip trim (1) for belt deflector with a plastic wedge.

Fig 2: Identifying Trim Of Belt Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

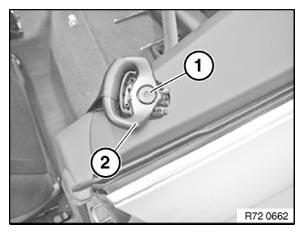

Release screws (1).

Tightening torque: 72 11 03A, see 72 11 SEAT BELTS

Remove belt deflection fitting (2).

Fig 3: Identifying Belt Deflection Fitting And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

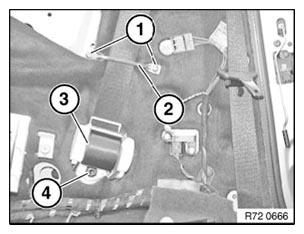

Release screw (1).

Tightening torque: 72 11 04A, see 72 11 SEAT BELTS

Remove deflection bracket (2).

Release screw (4).

Tightening torque: 72 11 01A, see 72 11 SEAT BELTS

Remove inertia reel mechanism (3).

Installation:

Coding of inertia reel must be seated in body opening.

Fig 4: Identifying Deflection Bracket, Inertia Reel Mechanism And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
