72 12 004 Removing and installing/replacing knee airbag module for driver protection

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with Safety regulations for handling airbag modules and pyrotechnical belt pretensioners.
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Disconnect battery negative lead . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD (CONVERTIBLE) or 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD (COUPE) .
Remove lower trim from instrument panel . See 51 45 180 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT (CONVERTIBLE) or 51 45 180 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT (COUPE) .

Unclip airbag module for driver protection from trim.

Installation:

Replace defective retainers.

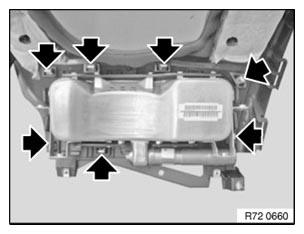

Fig 1: Locating Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Always replace airbag module for driver protection completely.
Do not carry out any repairs to the airbag module.
