Removal & Installation
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
Remove front wheel. Remove reinforcement plate.
Remove tie rod end on both sides from swivel bearing. During replacement, remove tie rod end at both ends of tie rod.
Remove lower section of steering spindle from steering gear. After installation, perform chassis alignment check. See SPECIFICATIONS & PROCEDURES article. Also, carry out steering angle sensor adjustment. See STEERING ANGLE SENSOR

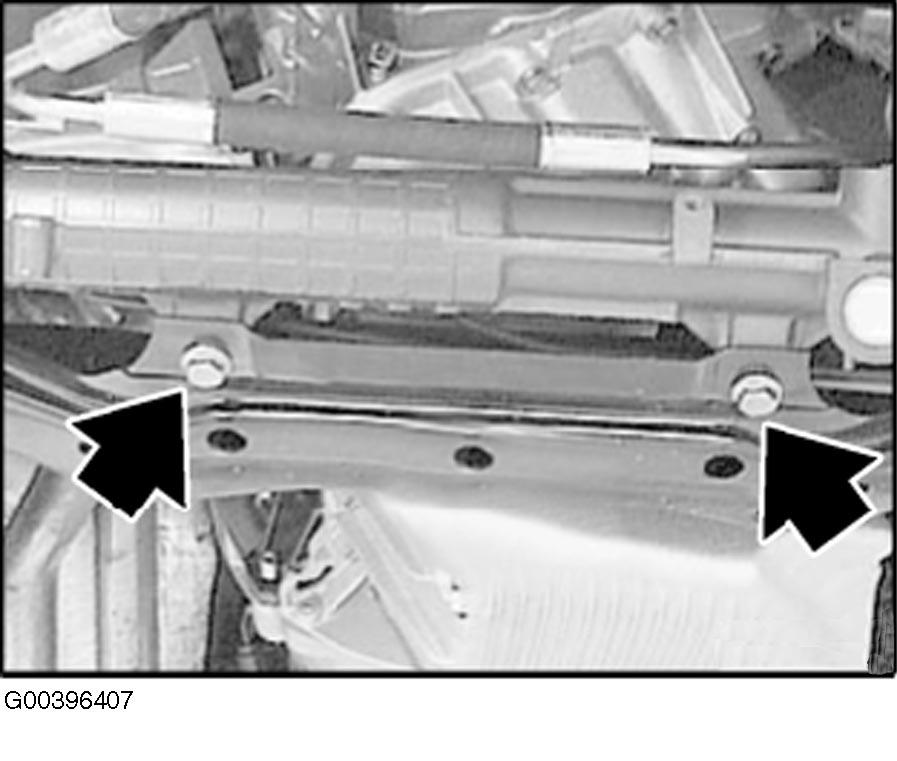

Unfasten screws. Remove steering gear toward front. During installation, replace screws and self-locking nuts. See Fig 1 .
