67 13 001 Replacing Drive Unit For Electrically Operated Left Or Right Door Mirror

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove mirror glass for mirror. Refer to 51 16 026 REPLACING MIRROR GLASS (Coupe) and/or 51 16 026 REPLACING MIRROR GLASS (Convertible).

Release screw (1).

Remove drive for electrically operated door mirror (2) in direction of arrow from mirror housing (3).

Fig 1: Door Mirror & Mirror Housing With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

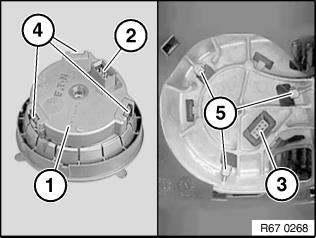

Fit drive for electrically operated door mirror (1) so that pin housing (2) engages exactly in plug housing (3) and locators (4) slide into guides (5).

Fig 2: Door Mirror, Pin Housing, Plug Housing, Locators & Guides

Courtesy of BMW OF NORTH AMERICA, INC.
