67 61 515 Replacing Drive With Gear For Actuating Slide/Tilt Sunroof

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove roof switch cluster . Refer to 61 31 043 REMOVING AND INSTALLING OR REPLACING ROOF SWITCH CENTER (Coupe) and/or 61 31 043 REMOVING AND INSTALLING OR REPLACING ROOF SWITCH CENTER (Convertible).

NOTE: Secure drive with gear for actuating slide/tilt sunroof (3) against falling out.

Unfasten plug connection (1) and disconnect.

Release screws (2), see tightening torque 54 13 1AZ in 54 13 ELECTRIC SUN ROOF COMPONENTS .

NOTE: Screws (2) are microencapsulated.

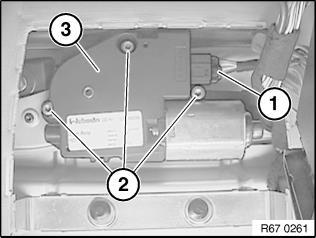

Fig 1: Securing Drive With Gear For Actuating Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Remove drive with gear for actuating slide/tilt sunroof (3).

Installation:

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).

Installation:

Fig 2: Removing Drive With Gear For Actuating Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Initialize slide/tilt sunroof . Refer to 54 0... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
