67 62 020 Removing and Installing/Replacing Flat Motor For Rear Left Or Right Power Window Unit

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear power window unit . Refer to 51 37 000 REMOVING AND INSTALLING/REPLACING COMPLETE REAR LEFT OR RIGHT POWER WINDOW UNIT (Convertible).

Release screws (1).

Tightening torque, see 51 37 1AZ in 51 37 SIDE WINDOWS, ELECTR. ACTUATED (Convertible) only.

Detach flat motor (2) from power window unit and remove.

Installation:

Fit flat motor (2) exactly on teeth of power window unit.

Replace thread-tapping screws with metric screws.

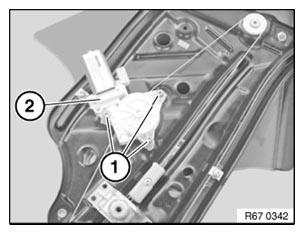

Fig 1: Identifying Flat Motor With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out normalization . Refer to 67 62... Notes On Initializing Power Window Unit In Front Door .
