65 12 072 Removing and installing (replacing) amplifier (Top HiFi system) (Early Version): Convertible

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

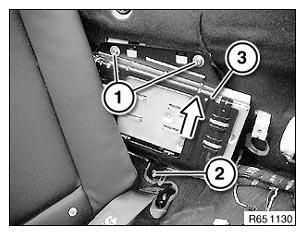

Release screws (1).

Release nut (2) and feed out amplifier (3) towards top.

Fig 1: Identifying Amplifier Screws (Convertible)

Courtesy of BMW OF NORTH AMERICA, INC.

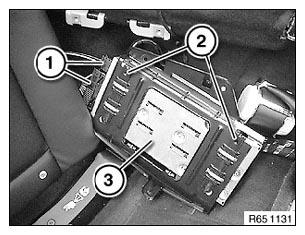

Disconnect plug connection (1).

Pull off retaining plates (2) in direction of arrow and remove amplifier (3) from mounting.

Installation:

Make retaining plates (2) are correctly seated.

Fig 2: Identifying Retaining Plates And Plug Connection (Convertible)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

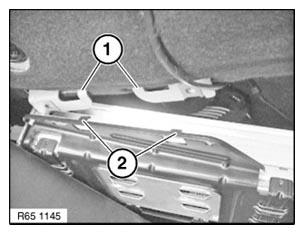

Make sure retaining lugs (2) are correctly seated in mounting (1).

Fig 3: Identifying Retaining Lugs And Mounting (Convertible)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding .
