65 13 090 Removing and installing/replacing speaker (mid-range speaker, rear side trim panel)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear side trim panel . See 51 43 012 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL UPPER SECTION and 51 43 034 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT LOWER SIDE TRIM SECTION .

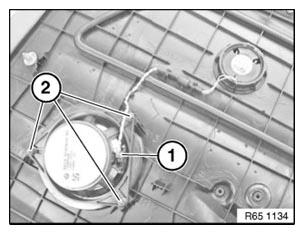

Disconnect plug connection (1).
Release screws (2) and remove speaker upwards from side trim panel.
Tightening torque 65 13 1AZ, see 65 13 SPEAKERS .
