65 11 080 Removing and installing/replacing radio

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove operator unit for heater/air conditioner . See 64 11 377 REMOVING AND INSTALLING OR REPLACING HEATER/AIR CONDITIONER OPERATOR UNIT (VERSION WITHOUT CCC/ASK) .

Release screws (1).

Pull back radio receiver (2) slightly.

Disconnect associated plug connections and remove radio receiver (2).

Installation:

Make sure the rear guide pin of the radio receiver (2) is correctly seated in the associated mounting.

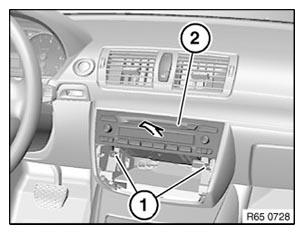

Fig 1: Identifying Back Radio Receiver And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding .
