65 75 080 Removing and installing/replacing interior movement detection module in left or right front door

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) . See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove front door trim panel . See 51 41 000 REMOVING AND INSTALLING (REPLACING) FRONT LEFT OR RIGHT DOOR TRIM PANEL .

Release screw (1).

Disconnect plug connection (2) and feed out interior movement detection module (3).

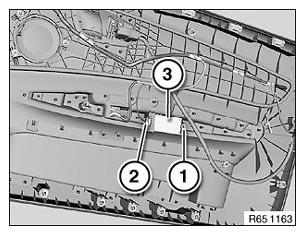

Fig 1: Identifying Plug Connection And Interior Movement Detection Module

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming .
