65 75 076 Removing and installing/replacing module for passenger compartment protection

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) . See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove panel for luggage compartment partition . See 51 47 140 REMOVING AND INSTALLING/REPLACING PANEL FOR LUGGAGE COMPARTMENT PARTITION .

Disconnect plug connection (2).

Expand catches (1) and remove passenger compartment protection module (3).

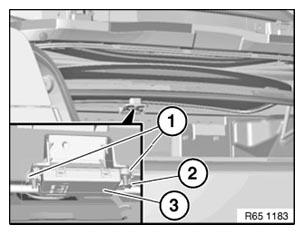

Fig 1: Identifying Passenger Compartment Protection Module And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming and coding .
