65 77 720 Removing and installing (replacing) left B-pillar sensor
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Note airbag safety instructions!
See 72 SAFETY PRECAUTIONS AND GENERAL INFORMATION (135i)
or 72 SAFETY PRECAUTIONS AND GENERAL INFORMATION (128i)
.
Incorrect handling can activate airbag and cause injury.
Incorrect handling can activate airbag and cause injury.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection)!
See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary preliminary tasks:
- Disconnect battery negative lead and cover. See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD (CONVERTIBLE).
- Remove rear side trim panel . See 51 43 012 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL UPPER SECTION and 51 43 034 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT LOWER SIDE TRIM SECTION .
IMPORTANT:

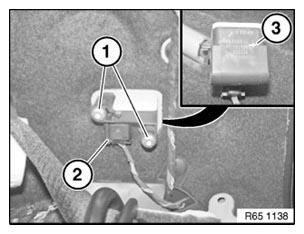

Direction arrow (3) must point when viewed in direction of travel outwards!
Release screws (1).
Remove sensor and disconnect plug connection (2).
Installation:
Tightening torque 65 77 3AZ, see 65 77 AIRBAG TRIGGERING CONTROL .
