65 77 580 Removing and installing seat position sensor for left or right front seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note airbag safety instructions!
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Remove front seat . See SEATS - REPAIR (CONVERTIBLE) .

Cut through cable tie (1).

Release screw (2) and remove seat position sensor (3) from seat rail.

Installation:

Replace cable tie (1).

Ensure correct cable routing (4).

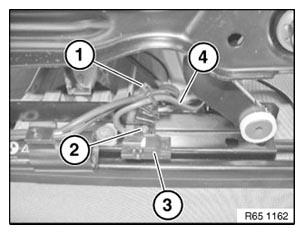

Fig 1: Identifying Seat Position Sensor And Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.
