65 20 150 Removing and installing/replacing backup aerial

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Unscrew nuts (1).

Remove back-up aerial and disconnect associated plug connection (2).

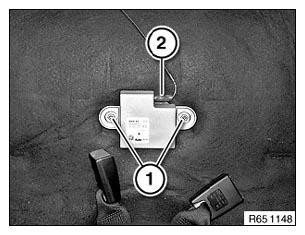

Fig 1: Identifying Plug Connection With Nuts
G06178012Courtesy of BMW OF NORTH AMERICA, INC.
