64 11 943 Replacing Evaporator Temperature Sensor
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove lower left trim from instrument panel. Refer to TRIM, BOTTOM LEFT (Coupe) or TRIM, BOTTOM LEFT (Convertible).

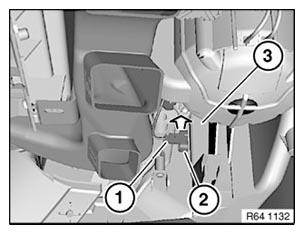

Disconnect plug connection (1).
Pull evaporator temperature sensor (2) in direction of arrow out of heater/air conditioner (3) and remove.
Installation:
Ensure evaporator temperature sensor (2) is correctly seated.
