64 11 909 Removing and Installing/Replacing Footwell Temperature Sensor
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove lower left trim from instrument panel. Refer to TRIM, BOTTOM LEFT (Coupe) or TRIM, BOTTOM LEFT (Convertible).

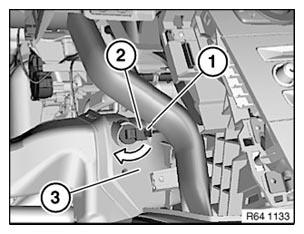

Disconnect plug connection (1).
Turn footwell temperature sensor (2) in direction of arrow and pull out of heater/air conditioner.
Installation:
Make sure footwell temperature sensor (2) is correctly seated in heater/air conditioner (3).
