64 11 906 Removing and Installing/Replacing Ventilation Temperature Sensor
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove center fresh air grille. Refer to REMOVING AND INSTALLING OR REPLACING MIDDLE FRESH-AIR GRILLE .

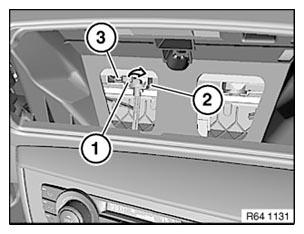

Turn ventilation temperature sensor (1) in direction of arrow and pull up and out of mounting (2).
Disconnect plug connection (3).
Installation:
Make sure ventilation temperature sensor (1) is correctly seated in mounting (2).
