63 99 132 Replacing Bulb For Front Left (Or Right) Side Light (After 03/2007)

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights) . Refer to 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

NOTE: Headlight (2) removed for purposes of clarity.

Unlock spring wire clips (1) in direction of arrow.

Remove cover from headlight (2).

Installation:

Make sure cover is correctly seated on headlight (2).

Guides (3) must be exactly seated in associated locators (4).

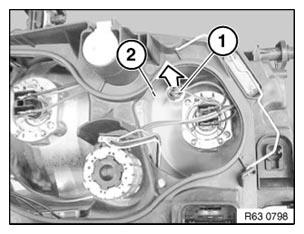

Fig 1: Unlocking Spring Wire Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Grip bulb holder (1) on both sides and pull towards rear out of headlight (2).

Installation:

Make sure bulb holder (1) is exactly seated in headlight (2).

Fig 2: Pulling Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw bulb for side marker lamp (1) in direction of arrow from bulb holder (2).

Installation:

Note type of bulb . See 63 31... Overview Of Interior Lights .

Fig 3: Removing Side Marker Lamp Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
