Special Tools Required
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
- 00 9 341
IMPORTANT:
Follow instructions for handling light bulbs (interior lights)
. Refer to 63 99... Instructions For Replacing Light Bulbs (Interior Lights) .

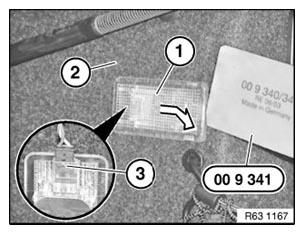

Lever luggage compartment light (1) with special tool 00 9 341 out of luggage compartment wheel arch trim (2) and feed out in direction of arrow.
Disconnect plug connection (3) and remove luggage compartment light (1).
Replacement:
If necessary, remove bulb . Refer to 63 99 461 Replacing Bulb For Glovebox Light .
