Special tools Required

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

00 2 030 UNIVERSAL HYDRO-LIFTER BASIC UNIT (128i) and/or 00 2 030 UNIVERSAL HYDRO-LIFTER BASIC UNIT (135i)
54 3 300
54 3 310
54 3 320
54 3 330

For setting down, the convertible top rest must be combined with individual accessories specifically suitable for the E88.

IMPORTANT:

Use special tools only in conjunction with universal lifter 00 2 030.

There is a risk of tilting over if other lifting equipment is used.

Pay attention to cables and hydraulic lines when fitting convertible top.

Cables/wires must not be kinked or crushed.

Always execute convertible top movements with a 2nd person helping (risk of damage).

Make sure force is always exerted uniformly to the convertible top sides otherwise the frame will be bent.

Convertible top rest:

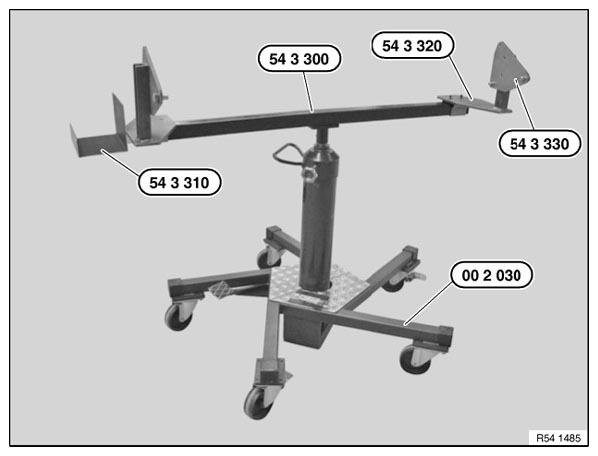

Fig 1: Identifying Special Tool Convertible Top Rest E88

Courtesy of BMW OF NORTH AMERICA, INC.

54 3 300 Support tube
54 3 310 Hydraulic rest
54 3 320 Adapter for convertible top mount, left and right
54 3 330 Convertible top mount, left and right

Place convertible top over bolts.

Secure main bearing of convertible top on convertible top mounts with screws.

IMPORTANT:

Convertible top tilts when closing without locking out of convertible top mount.

Set hydraulic control unit down sideways on rest.
