54 34... Checks On The Soft Top Linkage Before Fitting The Soft Top Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

WARNING: Soft top becomes pressureless without a warning signal. For all repair work, secure soft top with a suitable aid against collapsing. Ensure that the support is centered and broad. Ignition must remain switched off during the repair work. If this is not observed, preliminary damage to the hydraulic valves or a switch-off into overload protection cannot be excluded. Follow the diagnosis instructions.

Measure 1:

Identifying feature:

A possible complaint is in the form of a mark on the soft top cover.

Measure to prevent sporadic trapping of the soft top cover: Repair kit: 54 34 7 190 757  .

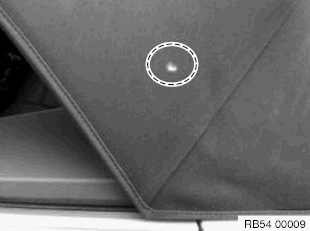

Fig 1: Mark On Top Cover
G00528565Courtesy of BMW OF NORTH AMERICA, INC.

Remedy:  Replace installed limit positions with constructionally modified components on both sides. 1. Previous limit position. 2. New limit position.

Fig 2: Identifying Limit Position Components
G00528566Courtesy of BMW OF NORTH AMERICA, INC.

Move soft top into position shown. Support both sides of soft top and soft top compartment lid with suitably broad aid to ensure that soft top is held in a stable position and does not fold up from front to rear.

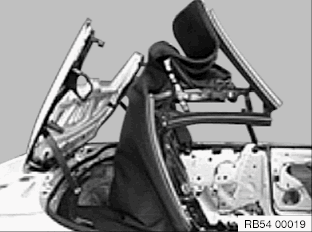

Fig 3: Moving Soft Top Into Position
G00528567Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Place protective mats in passenger compartment to protect it against swarf, removed rivets and damage.

Drill out rivet (1) on left and right and remove limit positions (2). Apply corrosion protection if necessary.

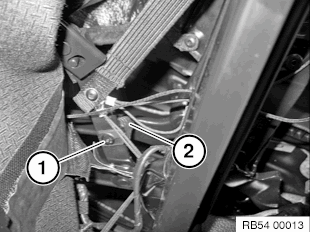

Fig 4: Removing Limit Positions
G00528568Courtesy of BMW OF NORTH AMERICA, INC.

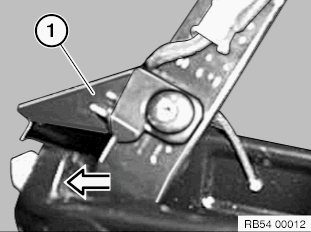

Attach new limit position (1) from above. Installation note:  Sharp end of the limit position in the direction of travel. Insert rivet and use riveting tongs.

Fig 5: Attaching Limit Position
G00528569Courtesy of BMW OF NORTH AMERICA, INC.

Measure 2:

Identifying feature:  A possible complaint is in the form of a protruding upper thread. Refinish the seal carrier (main pillar)

NOTE: The seal carrier is cropped by approx. 6 mm and the outer edges are rounded.

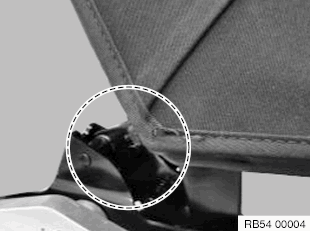

Fig 6: Protruding Upper Thread
G00528570Courtesy of BMW OF NORTH AMERICA, INC.

Move soft top into position shown. Support both sides of soft top and soft top compartment lid with suitably broad aid to ensure that soft top is held in a stable position and does not fold up from front to rear.

Fig 7: Move Soft Top Into Position
G00528555Courtesy of BMW OF NORTH AMERICA, INC.

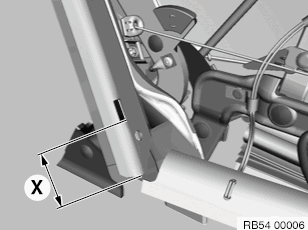

Check seal carrier distance: Measure distance from lower edge of elongated hole to lower edge of seal carrier. Dimension (x) can have the following values: - 40 mm. Previous version = crop. - 34 mm Corresponds to new version = Do not shorten.

Fig 8: Checking Seal Carrier Distance
G00528572Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (X) = mark 6 mm parallel to lower edge. Remove the seal carrier. Crop seal carrier to dimension. Round outer edges with file and deburr interface.

IMPORTANT: Sealing carrier may be damaged by improper clamping. Protect sealing carrier with suitable auxiliary materials during clamping. All sharp edges must be rounded. After completing the work, apply corrosion protection.
Fig 9: Checking Dimension X
G00528573Courtesy of BMW OF NORTH AMERICA, INC.

Measure 3:

Identifying feature: Possible complaint in the form of damage in the C-pillar area. Measure against damage of soft top cover in area of C-pillar: Repair kit: 54 34 7 311 688

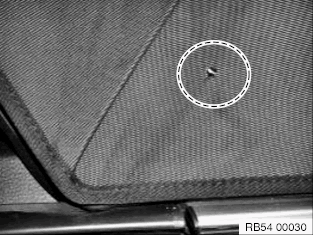

Fig 10: Identifying Damage In C-Pillar Area
G00528551Courtesy of BMW OF NORTH AMERICA, INC.

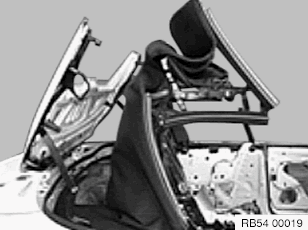

Move soft top into position shown. Support both sides of soft top and soft top compartment lid with suitably broad aid to ensure that soft top is held in a stable position and does not fold up from front to rear.

Fig 11: Move Soft Top Into Position
G00528552Courtesy of BMW OF NORTH AMERICA, INC.

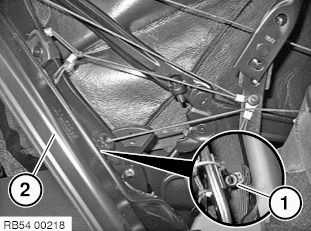

Left side only:  Disconnect rivet connection from the guide lug (1) at the C-pillar (2).

Fig 12: Disconnect Rivet Connection From Guide Lug
G00528553Courtesy of BMW OF NORTH AMERICA, INC.

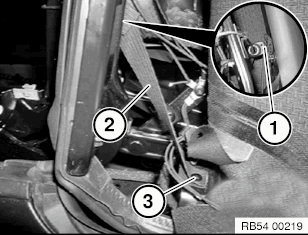

IMPORTANT: Please observe correct routing of the bungee cord and tension cables as shown on the graphic.

Double-up the rubber band (2) and attach to the soft-top bow using a rivet (3). Double-up rubber band (2) and rivet to C-pillar together with guide lug (1).

Fig 13: Identifying Position Of Bungee Cord And Tension Cables
G00528554Courtesy of BMW OF NORTH AMERICA, INC.

Move soft top into position shown. Support both sides of soft top and soft top compartment lid with suitably broad aid to ensure that soft top is held in a stable position and does not fold up from front to rear.

Fig 14: Move Soft Top Into Position
G00528555Courtesy of BMW OF NORTH AMERICA, INC.

Adjust the angle at the linkage stop (1) of the convertible top main bearing on the left and right.

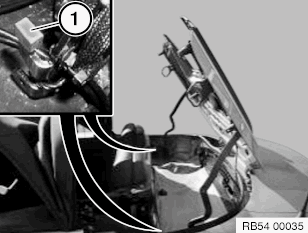

Fig 15: Adjust Angle At Linkage Stop
G00528556Courtesy of BMW OF NORTH AMERICA, INC.

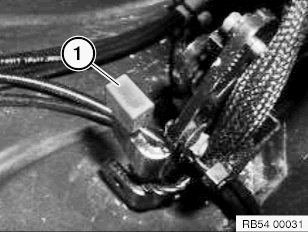

Remove angled and round protective cap (1) at the limit position of the main bearing on left and right.

Fig 16: Identifying Angled And Round Protective Cap
G00528557Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:  Soft top must be in this position to be able to adjust the correct position of the limit position.

Fig 17: Move Soft Top Into Position
G00528555Courtesy of BMW OF NORTH AMERICA, INC.

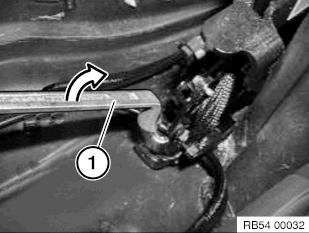

Place a suitable tool (e.g. a cranked ring spanner, width across flats 10) on the limit position of the convertible top main bearing up to the upholstery. Carefully bend limit position forward with the tool, parallel to the edge of the main bearing.

Fig 18: Bend Limit Position Forward
G00528559Courtesy of BMW OF NORTH AMERICA, INC.

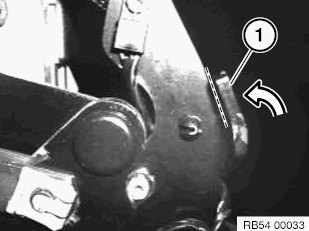

Bend limit position (1) forward as shown. The limit position (1) must lie parallel to the cutting edge of the main bearing after bending.

IMPORTANT: Apply corrosion protection!
Fig 19: Ensure Limit Position Is Parallel To Cutting Edge
G00528560Courtesy of BMW OF NORTH AMERICA, INC.

Fit angled or round protective cap (1) onto the limit stop of the main bearing.

Fig 20: Identifying Angled And Round Protective Cap
G00528557Courtesy of BMW OF NORTH AMERICA, INC.
