54 34 347 Removing And Installing/Replacing Rear Roof Frame Seal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open soft top until work area is accessible
Open side windows

WARNING:

Soft top becomes pressureless without a warning signal.

For all work, secure soft top with a suitable support tool against collapsing.

Ensure Convertible top is supported in the middle.

Ignition must remain switched off during the repair work.

Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.

Unclip insert part (1) from rear roof frame seal on left and right.

Pope window guide out of seal carrier.

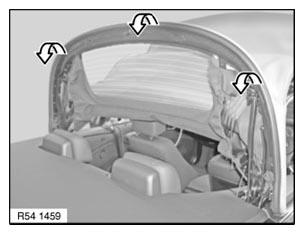

Fig 1: Inserting Part From Rear Roof Frame Seal On Left & Right

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal (2) is correctly seated on seal carrier (1).

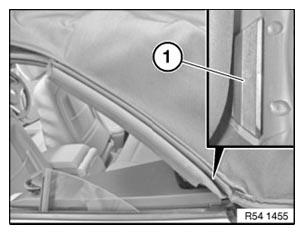

Fig 2: Identifying Seal Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Lever soft top fabric welt out of window guides (1) on left and right.

Fig 3: Identifying Window Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Pull window guide away from tension bar.

Fig 4: Pulling Window Guide Away From Tension Bar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rear window guide must be flush with middle window guide.

Side windows must run into window guide correctly and rest in window guide over entire width.

Check function.

Check adjustment of side window and adjust if necessary. Refer to 51 37 154 ADJUSTING REAR LEFT OR RIGHT SIDE WINDOW .
