54 34 341 Removing And Installing/Replacing Left Or Right Middle Roof Frame Seal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open Convertible top partially until work area is accessible

WARNING:

Soft top becomes pressureless without a warning signal.

For all work, secure soft top with a suitable support tool against collapsing.

Ensure Convertible top is supported in the middle.

Ignition must remain switched off during the repair work.

Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.

Pope window guide (1) out of seal carrier (roof frame middle).

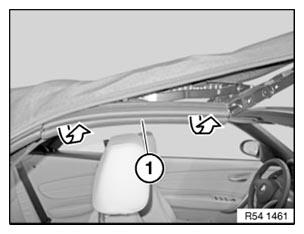

Fig 1: Removing Window Guide Out Of Seal Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal (2) is correctly seated on seal carrier (1).

Fig 2: Identifying Seal Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Window guide must be flush with front and rear window guides.

Side windows must run into window guide correctly and rest in window guide over entire width.

Check function.

Check adjustment of side windows and adjust if necessary. Refer to 51 37 154 ADJUSTING REAR LEFT OR RIGHT SIDE WINDOW .
