54 34 340 Removing And Installing/Replacing Cowl Panel Seal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cowl panel trim . Refer to 54 34 127 Removing And Installing/Replacing Trim For Cowl Panel .

WARNING:

Soft top becomes pressureless without a warning signal.

For all work, secure soft top with a suitable support tool against collapsing.

Ensure Convertible top is supported in the middle.

Ignition must remain switched off during the repair work.

Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.

Pop cowl panel seal on left and right out of roof frame.

Installation:

Make sure seal is correctly seated on roof frame (seal carrier).

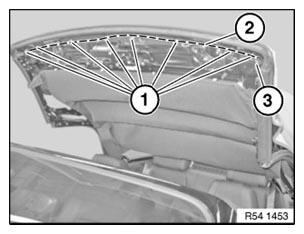

Fig 1: Removing Cowl Panel Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal (2) is correctly seated on seal carrier (1).

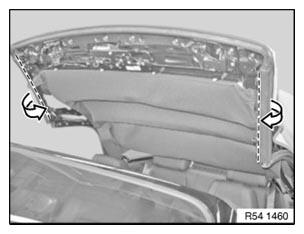

Fig 2: Identifying Seal Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cowl panel seal with clamping strip.

Pull cowl panel seal off clamping strip.

Fig 3: Identifying Convertible Top Fabric Welt & Strip With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cowl panel seal must be flush with middle window guide.

Side window glass must run into cowl panel seal correctly and rest in cowl panel seal over entire width.

Check function.

Check adjustment of side windows and adjust if necessary. Refer to 51 37 154 ADJUSTING REAR LEFT OR RIGHT SIDE WINDOW .
