54 34 250 Removing And Installing/Replacing A Tension Strap
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Partially remove Convertible top fabric . Refer to 54 34 120 Replacing Convertible top fabric .
WARNING:
Soft top becomes pressureless without a warning signal.
For all work, secure soft top with a suitable support tool against collapsing.
Ensure Convertible top is supported in the middle.
Ignition must remain switched off during the repair work.
Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.

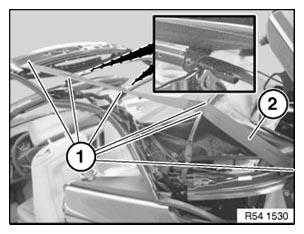

Disconnect rivet connections (1) for fastening tension strap (2).
IMPORTANT:
Remove rivet remnants completely (rattling noises).
Feed tension strap (2) out of Convertible top frame and remove.
