54 34 211 Replacing Tension Cable (Long Or Short)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Soft top becomes pressureless without a warning signal. For all work, secure soft top with a suitable support tool against collapsing.
Ensure Convertible top is supported in the middle.
Ignition must remain switched off during the repair work.
Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.

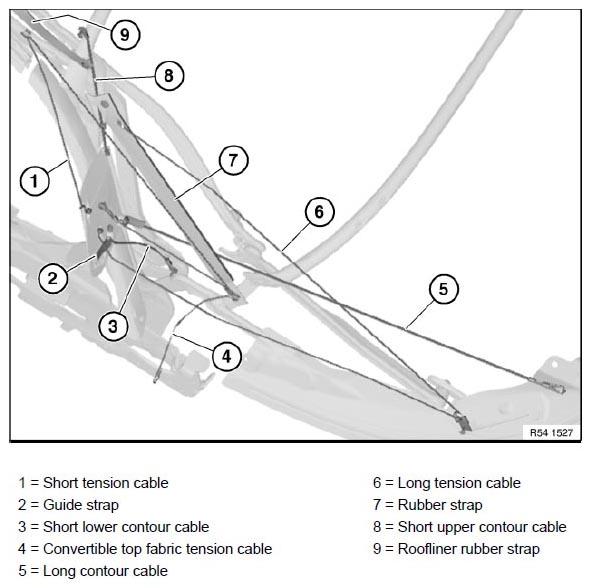

Overview of tension cables:
IMPORTANT:
Tension cables and contour cables must not be shortened.
They must be replaced if damaged.
Installation:
Secure tension cables and contour cables in event of repair to main pillar plate by means of knots.
Tie knot to end of cable with excessive length of max. 5 mm.
Operation is described in:
Replacing roofliner . Refer to 54 34 130 Replacing Roofliner .
