54 34 159 Removing And Installing/Replacing Left Convertible Top Compartment Lock
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove cowl panel trim . Refer to 54 34 127 Removing And Installing/Replacing Trim For Cowl Panel .
- Stow Convertible top
Installation:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Thread of nut must be cleaned beforehand in event of repeated use
When replacing cowl panel fastener:
Before removing, mark position of screws to ensure correct alignment when installing.
When replacing Convertible top frame:
Before removing, mark position of fastener to ensure correct alignment when installing.

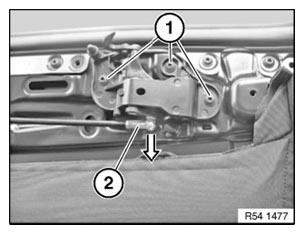

Open retaining bracket and unclip ball end (2).
Release screws (1).
Installation:
Replace bolts.
