54 34 128 Removing And Installing/Replacing Trim Panel For Cover Flap

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For purposes of clarity, the cover flap is shown with the component removed.

Necessary preliminary tasks: Remove trim strip from cover flap

Release left and right screws (1).

Fig 1: Identifying Left And Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

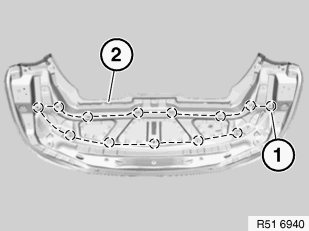

Unclip and remove trim of cover flap (2) as shown in the marked areas (1). Installation: Replace faulty clips (1).

Fig 2: Removing Trim Of Cover Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement: Release screws from seal lip (1) left and right. Modify seal lips. Modify clips (2).

Fig 3: Modifying Seal Lips

Courtesy of BMW OF NORTH AMERICA, INC.
