54 34 018 Removing And Installing/Replacing Convertible Top Compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Open convertible top compartment lid until all hydraulic cylinders are completely extended.

Fig 1: Opening Convertible Top Compartment

G04781216

Courtesy of BMW OF NORTH AMERICA, INC.

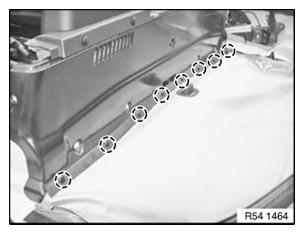

Lever out expander rivets in marked area.

Installation:

If necessary, replace faulty expander rivets.

Fig 2: Identifying Expander Rivets Area

G06177403

Courtesy of BMW OF NORTH AMERICA, INC.

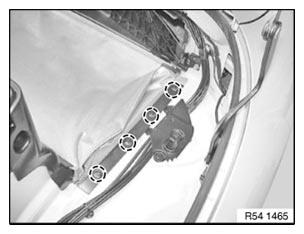

Lever out expander rivets on left and right in marked area.

Installation:

If necessary, replace faulty expander rivets.

Stow convertible top compartment in downward direction.

Fig 3: Identifying Expander Rivets On Left & Right In Marked Area

G06177404

Courtesy of BMW OF NORTH AMERICA, INC.

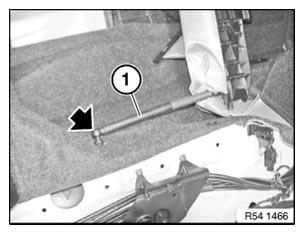

Unclip ball end from spring (1) on left and right.

Fig 4: Unclipping Ball

G06177405

Courtesy of BMW OF NORTH AMERICA, INC.

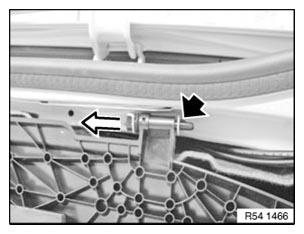

Unlock rotary shaft pin on left and right and pull out.

Remove convertible top compartment from vehicle.

Fig 5: Locating Rotary Shaft Pin

G06177406

Courtesy of BMW OF NORTH AMERICA, INC.
