54 37... Removing and Installing/Replacing Convertible Top Drive

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cowl panel trim . Refer to 54 34 127 Removing And Installing/Replacing Trim For Cowl Panel .

WARNING:

Soft top becomes pressureless without a warning signal. For all work, secure soft top with a suitable support tool against collapsing.

Ensure Convertible top is supported in the middle.

Ignition must remain switched off during the repair work.

Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.

Installation:

Microencapsulated screws (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 minutes (start of curing)
Microencapsulated screws must not be retightened
Thread of nut must be cleaned beforehand in event of repeated use

IMPORTANT:

Do not lift off ball socket with engaged retaining bar.

Replace overelongated retaining bar.

Before installation, grease ball socket if necessary.

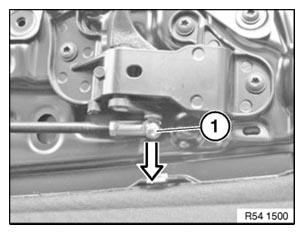

Open retaining bar on left and right and unclip ball end (1).

Fig 1: Opening Retaining Bar On Left And Right And Unclip Ball End

Courtesy of BMW OF NORTH AMERICA, INC.

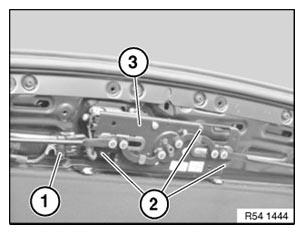

Unfasten plug connection (1) and disconnect.

NOTE: Secure Convertible top drive (3) against falling down.
Unfasten screws (2).
Remove Convertible top drive (3).

Fig 2: Identifying Plug Connection And Convertible Top Drive With Screws
