52 24 465 Removing And Installing Filler Element

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Unlock filler element and tilt forwards out of rear seat backrest.

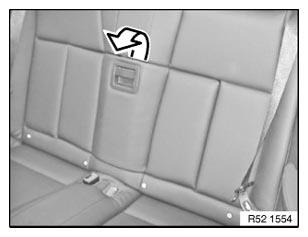

Fig 1: Removing Filler Element
G06177345Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove filler element.

Installation:

Make sure filler element is correctly seated on plug-in tongue.

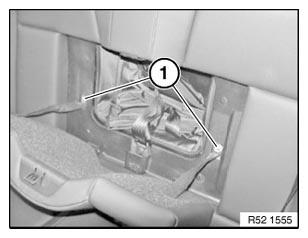

Fig 2: Identifying Release Screws
G06177346Courtesy of BMW OF NORTH AMERICA, INC.
